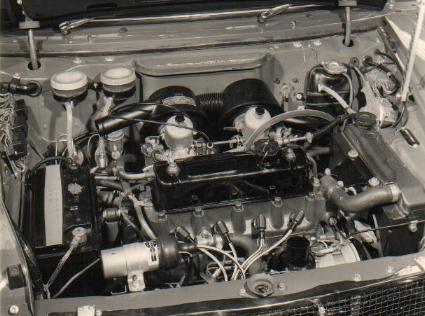

UNDER THE BONNET
Specifications:
Engine
Number of cylinders:
4 inline
Bore: 3.16"
(80.26mm)
Stroke: 3.51"
(88.9mm)
Displacement:
109.75 cu. in. (1,798cc)
Valve position
and operation: Overhead pushrods and rockers
Compression
Ratio: 8.2:1 (optional 6.8:1 for export)
Max. bhp (net):
85 at 5,300rpm
Max bmep (net):
136 psi at 2,100 rpm
Max torque
(net): 99 ft. lbs. at 2,100 rpm
Carburettor:
SU type MS4
Fuel Pump:
SU electric
Tank Capacity:
10.75 Imperial gallons (49 litres)
Sump Capacity:
15 pints (8.5 litres)
Oil Filter:
Tecalemit full flow
Transmission
Clutch: 8.5"
diameter, Borg & Beck single dry plate, hydraulically operated
Gearbox: 4
speed, all synchromesh, cable operated control floor change
Overall Gear
Ratios:
Standard: Top
4.19, 3rd 5.79, 2nd 9.29, 1st 13.78, Reverse 12.88
Optional:
Top 3.88, 3rd 5.37, 2nd 8.61, 1st 12.78, Reverse 11.94
Final Drive:
Hypoid ratios: 4.19:1
Optional:
3.88:1.
